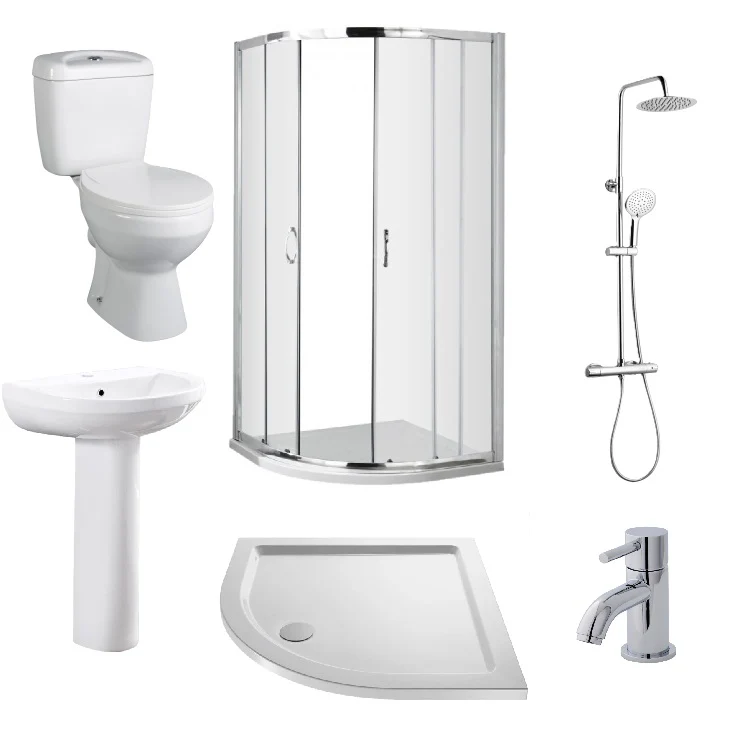

The Teramo 900mm Quadrant Shower Enclosure Bathroom Suite makes a powerful statement, transforming your bathroom into an even more luxurious and stylish which gives your bathroom that extra boost of modernness. Included is everything you'll need to innovate and rejuvenate your current bathroom setup.

Suite includes :-
Quadrant Shower Enclosure
Shower Tray
Basin and pedestal
Close-coupled toilet and seat
Shower
Basin mono mixer and waste

Technical Specification

Enclosure

• Height : 1850mm
• Width : 900mm
• Depth : 900mm
• Door Adjustment : 865 - 885mm
• Swing Radius : 538mm
• Material Thickness : 5mm Toughened Aluminium Glass
• Frame Finish : Satin Chrome
• Glass Finish : Clear
• Shower Door Type : Double Sliding Doors
• Enclosure Shape : Quadrant
• Excludes : Shower Tray & Waste

• Weight : 35kg
• Handed : Reversible

Tray

• Type : Square
• Size : 900mm x 900mm
• Height : 40mm
• Waste position : side
• High quality design and build
• Flat top
• Low profile design
• Material : ABS top stone resin tray
• Made with Phthalate free materials
• Excludes waste. Designed for 90mm high flow waste
• The sleek Low Profile design is available in a range of sizes
• Guarantee : 25 Years

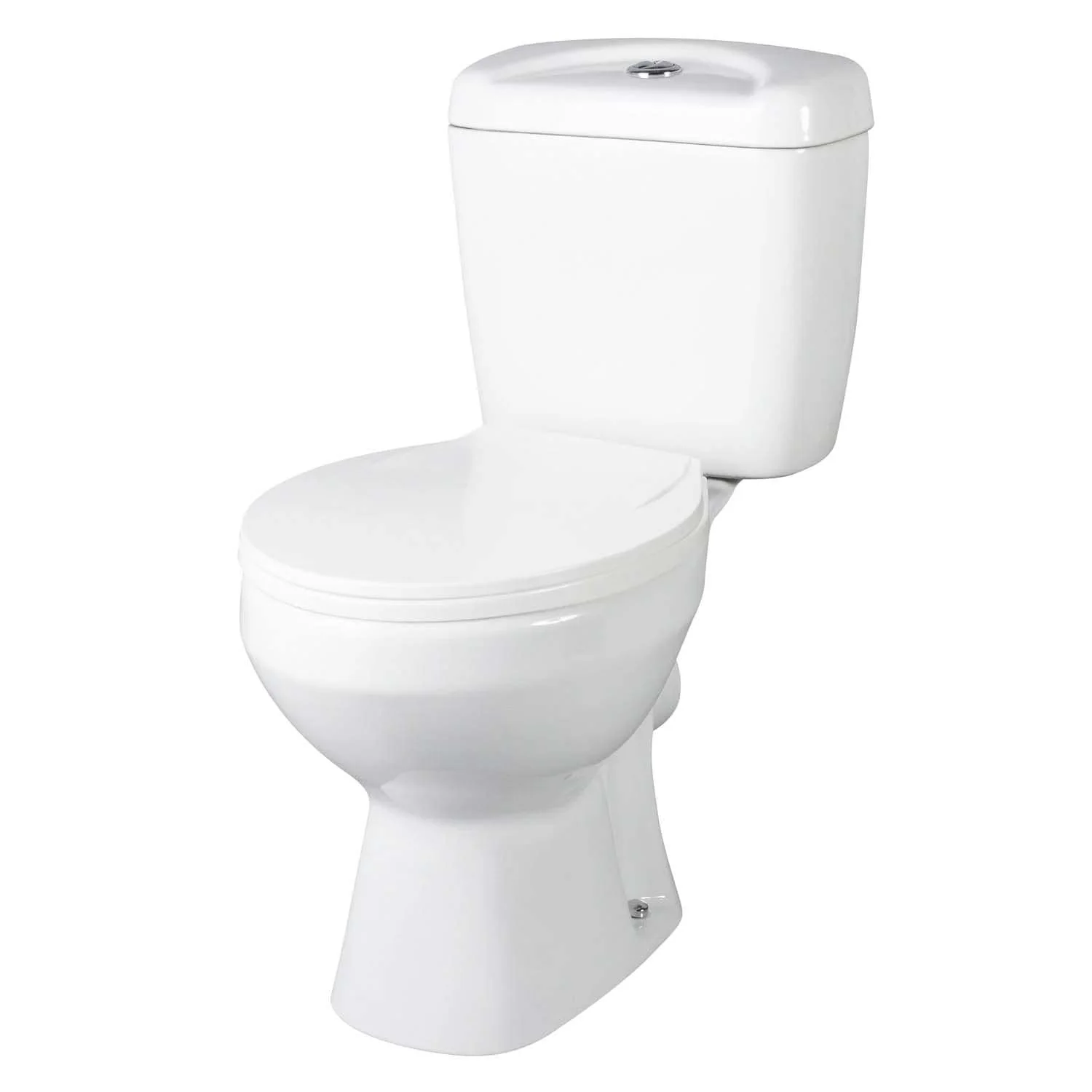

Toilet

• Toilet Total Height : 748mm
• Toilet Width : 382mm
• Toilet Projection : 635mm
• Toilet Pan Height : 380mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 26.33kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

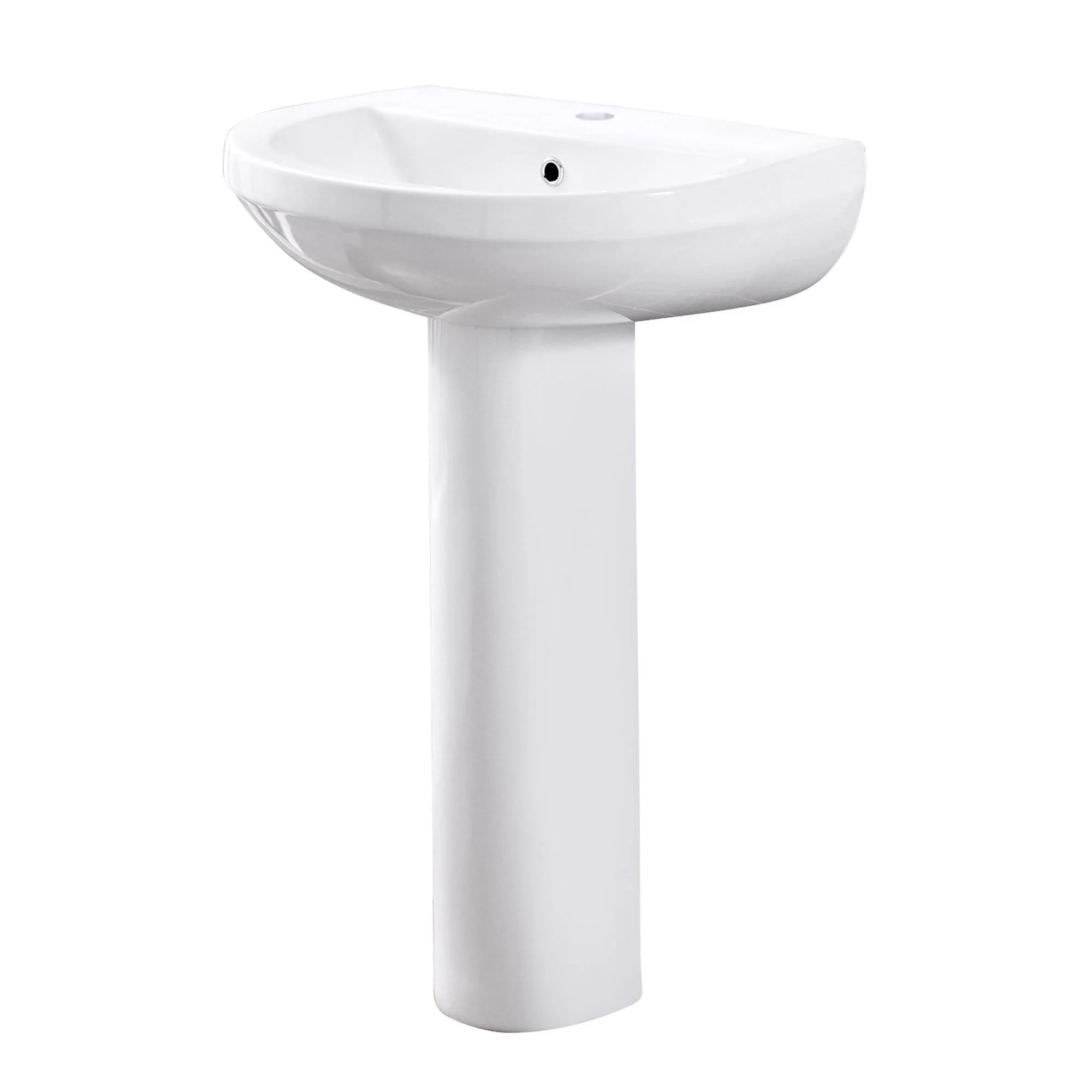

Basin

• Total Height : 845mm
• Width : 555mm
• Projection : 445mm
• Basin Bowl Height : 205mm
• Outlet Connection Size : 70mm
• Wall to Waste Outlet : 180mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Round
• Weight 23.44kg
• Includes : Overflow

Shower

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• Easyclean anticalc jets on both showerhead and handset
• Thermostatic shower incorporates diverter to control flow to either overhead rose or handset
• Set complete with one 200mm shower rose and one handset
• Lightweight handset provided to minimise risk of damage to shower tray or bath in case of accidental droppage
• Round thermostatic mixing valve of durable brass construction and chrome finish
• Rigid riser with polished chrome finish
• Easy installation

• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised sytems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years

Basin Tap

• Height : 117mm
• Tap Spout Reach : 100mm
• Base to Spout : 51mm
• 40mm cartridge
• Inlet Connection Size : 1/2 BSP
• Material Specification : Brass
• Finish : Chrome
• Shape : Round
• Flow Rate 0.2 Bar : 4.1 Litres per Min
• Flow Rate 0.5 Bar : 6.4 Litres per Min
• Flow Rate 1 Bar : 9.1 Litres per Min
• Flow Rate 2 Bar : 12.9 Litres per Min
• Flow Rate 3 Bar : 15.8 Litres per Min
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails
• Weight : 0.64kg

Shower Tray Waste - Optional

• Height : 78mm
• Width : 115mm
• Depth : 780mm
• Finish : Chrome
• Connection Size : 11/2"
• Shape : Round
